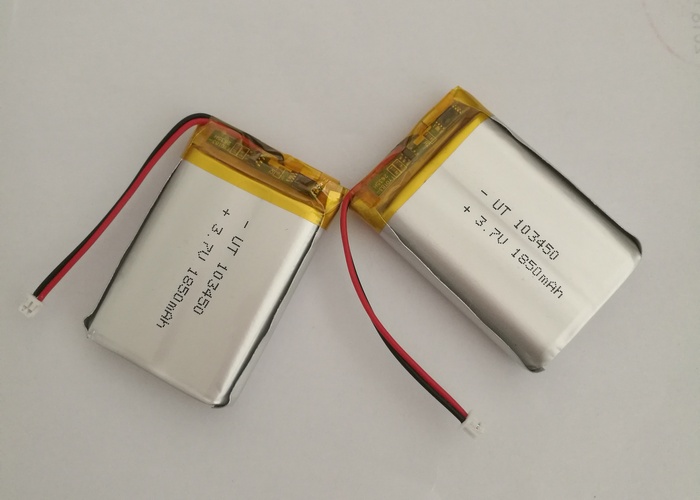

103450 Lipo battery 3.7Volt 1800mah Rechargeable Lithium Polymer Battery
Lipo battery Specification:
| Product Name | 103450 1800mAh 3.7V lipo battery |
| Battery Type | Lithium Polymer battery |
| Power Wh: | 6.66Wh | |
| Accembly Composed Type | 1S/ 1 cell | |
| Nominal Capacity | 1800 mAh | @0.2C discharge |
| Nominal Voltage | 3.7 V | |
| Charge Voltage | 4.2±0.12 V | |
| Cut-off Voltage | 3.0 V | |
| Standard charge Current | 360 mA | @0.2C charge |
| Max. charge current | 1800 mA | @1C charge |
| Standard Discharge Current | 360 mA | @0.2C discharge |
| Max. Discharge Current | 1800 mA | @1C discharge |
| Resistance | ＜100 mΩ | |
| Cycle Life: | Over 500 times | |
| Weight (Approx.) | 32 g | |
| Dimensions(T.W.L.) | 10*34*50 (mm) | |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -10 ~ 60℃ | |
| Storage Temperature | 0~35℃ | Less than one month |
| 0~25℃ | More than one month |
Battery Quality:
1. Cells: A grade cells to make sure batteries in high and full capacity
2. Protection: Dual IC chips, that can anti-short circuit, anti-over charge, anti-over current, anti-overload
3. Compose Type: Injection Technology to make battery more stable
4. Certifications: CE, UN38.3, RoHS, MSDS
5. Long life cycle, No memory, environment friendly
Advantages:
1, High energy density,500 times long cycle life
2, High working voltage for single battery cells
6, Capacity, resistance, Voltage, platform time consistency is good
7, With short-circuit over charge and discharge protections
9, Good consistency, low self discharge
Main application:
Lithium polymer battery(Lipo battery) widely used for GPS, Portable DVD, PDA, Cellular phone , mobile phone, notebook, earphone, bluetooth device,Medical devices battery, MP3 ,MP4 player,Wireless transmitter, Wireless receiver,airsoft gun, powerdriven tools & toy, camcorder, digital camera, head set stereo, handy terminal, mini disc player, E-cigarette, E-bike, E-scooter, EV, UPS etc.
